Multistage Self-Priming Pump

Multistage Self-Priming Pump
USM, UBM, MEF types
(PAT.)

High head type with high performing self-priming mechanism

Selection chart
MEF type

Model number explanation
XXXX-$-##@@

XXXX

: Pump type

$

: Number of stages

##

: Suction/Discharge bore (cm)

@@

: Head classification

In the selection chart below, pumps are grouped by bore size, and the reference number $-(**) within each group is shown.

$

: Number of stages

(**)

: Electric motor output power (kW) at maximum performance (using normal water at normal temperature)

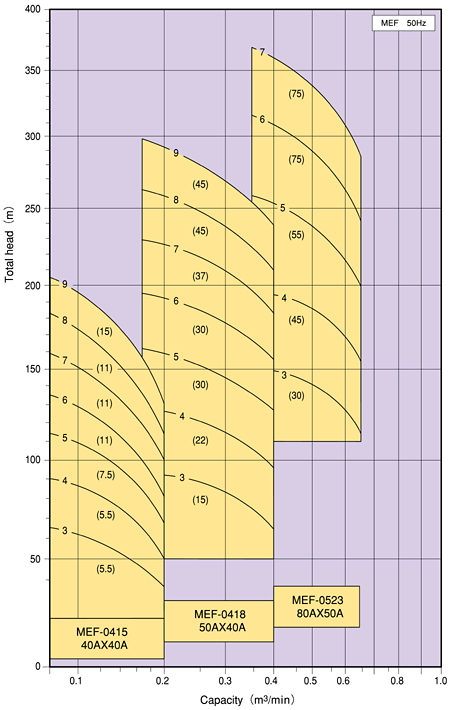

50Hz
Multistage Self-Priming Pump MEF 50Hz

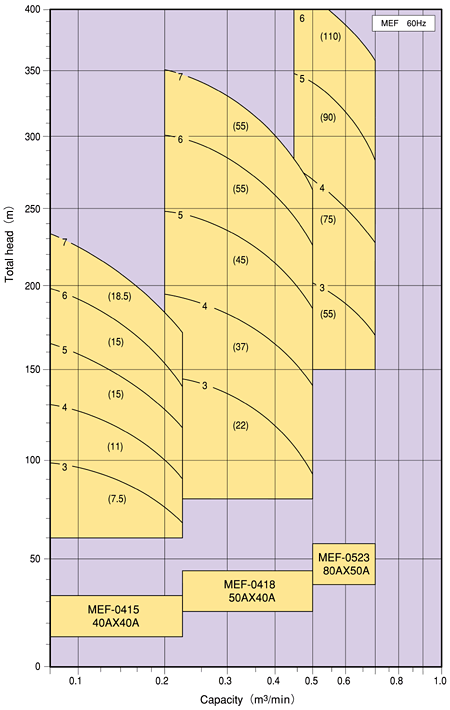

60Hz
Multistage Self-Priming Pump MEF 60Hz

Outer dimensions
MEF type

Multistage Self-Priming Pump

Unit: mm

Model No.
Bore
Suction/
Discharge
Pump
Weight
(kg)
Motor
Base plate
A
B
C
D
E
F
n
Frame
No.
G
J
Z-d
K
N
L
M
R
P

MEF-3-0415

40/40

228

215

135

160

160

235

3

79

132S

446.5

40

4-19

125

750

1000

370

400

120

4-0415

40/40

228

260

135

160

160

235

3

90

160M

575

40

4-19

125

850

1100

410

450

120

5-0415

40/40

228

305

135

160

160

235

3

101

160M

575

65

4-19

150

900

1200

410

450

120

6-0415

40/40

228

350

135

160

160

235

3

112

160M

575

65

4-19

150

900

1200

410

450

120

7-0415

40/40

228

395

135

160

160

235

3

123

160L

619

65

4-19

150

1000

1300

410

450

120

8-0415

40/40

228

440

135

160

160

235

3

135

160M

575

65

4-19

150

1000

1300

410

450

120

9-0415

40/40

228

485

135

160

160

235

3

146

160M

575

115

4-19

200

1000

1400

410

450

150

MEF-3-0418

50/40

318

262

180

190

190

324

3

109

180M

646

74

4-19

150

1000

1300

450

500

120

4-0418

50/40

318

312

180

190

190

324

4

126

200L

776

124

4-23

200

1000

1400

450

500

150

5-0418

50/40

318

362

180

190

190

324

4

143

200L

776

124

4-23

200

1100

1500

450

500

150

6-0418

50/40

318

412

180

190

190

324

4

160

225S

782

124

4-23

200

1100

1500

450

500

150

7-0418

50/40

318

462

180

190

190

324

4

177

225S

782

169

4-23

250

1100

1600

450

500

150

8-0418

50/40

318

512

180

190

190

324

4

194

200L

776

169

4-23

250

1100

1600

450

500

150

9-0418

50/40

318

562

180

190

190

324

4

211

200L

776

169

4-23

250

1200

1700

450

500

150

MEF-3-0523

80/50

402

300

230

240

240

395

4

145

225S

782

124

4-23

200

1100

1500

550

600

150

4-0523

80/50

402

360

230

240

240

395

4

170

250S

848

169

4-23

250

1200

1700

600

650

150

5-0523

80/50

402

420

230

240

240

395

4

195

250M

886

169

4-23

250

1200

1700

600

650

150

6-0523

80/50

402

480

230

240

240

395

4

220

280S

971

169

6-23

150

750 x 2

1800

590

650

180

7-0523

80/50

402

540

230

240

240

395

4

245

250S

886

169

6-23

150

750 x 2

1800

590

650

180

 Note:

Since dimensions are based on JIS 10K standard, they may be changed according to standards/specifications.

Outer dimensions refer only to electric motors at maximum motor output, therefore there may be differences in outer dimensions. For details on related dimensional outline drawings, please contact us.

Installation and piping: Please install an inverse U-bent pipe as suction piping for efficient self-priming. For details, please refer to the page for UHN type.

Sealing: When equipped with a mechanical seal, supply of sealing water from the outside may be necessary for suction pumping. Gland packing may not be used for force pumping when the pressure is extremely high.
