Multistage Centrifugal Pump

Multistage Centrifugal Pump
MCF, MCH types

High head type with high performance and wide variety of materials

Multistage Centrifugal Pump

Bore

40-200mm

Total head

50-400m

Capacity

0.1-7m3/min

>Selection & Dimensions

MCF type (Driven by 2-pole motor):

Compact, high head, high performance multistage centrifugal pump
for force pumping

MCH type (Driven by 4-pole motor):

High head, high performance multistage centrifugal pump
for force pumping


Self-balancing mechanism

With the floating disk type balancing mechanism originally developed by YOKOTA for the MCF and MCH types, the axial thrust of its main shaft balances without axial movement of the shaft. Therefore ordinary ball bearings can be adopted, and the pump can be disassembled and reassembled very easily.

Large selection of materials

A wide variety of materials are available, including FC, SCS and YOKOTA's corrosion and wear resistant special stainless steel casting (YST), to meet the needs of various kinds of liquid.


Applications

Boiler feed

Water supply to high elevations

Pressurized water discharge

Seawater transfer

Other

Example applications and installations

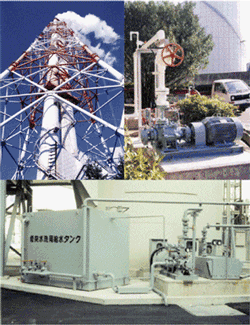

Multistage Centrifugal Pump / Electric power plant funnel flushing pump
Multistage Self-Priming Pump / Water supply pump for Oita Safari Park
Water supply pump for Oita Safari Park
Electric power plant funnel flushing pump

These are non-self-priming type pumps for force pumping.
For self-priming types (for suction pumping) with similar specifications,
please refer to Multistage Self-Priming Pump USM, UBM, MEF types.


Structure

MCF, MCH types

Multistage Centrifugal Pump
Part name
Part name
1

1st-stage suction casing

11

Multistage impeller

2

1st-stage casing

12

Seal impeller

3

2nd-stage suction casing

13

Exhaust cover

4

Intermediate-stage casing

14

Balancing drum

5

Intermediate-stage guide vane

15

Balancing drum bush

6

Final-stage casing

16

Balancing disk

7

Balancing chamber cover

17

Shaft

8

1st-stage guide vane

18

Ball bearing

9

Guide vane

19

Ball bearing

10

1st-stage impeller

20

Balancing pipe


Selection chart & Outer dimensions

Selection chart
MCF, MCH types

Model number explanation
XXXX-$-##@@

XXXX

: Pump type

$

: Number of stages

##

: Suction/Discharge bore (cm)

@@

: Head classification

In the selection chart below, pumps are grouped by bore size, and the reference number $-(**) within each group is shown.

$

: Number of stages

(**)

: Electric motor output power (kW) at maximum performance (using normal water at normal temperature)

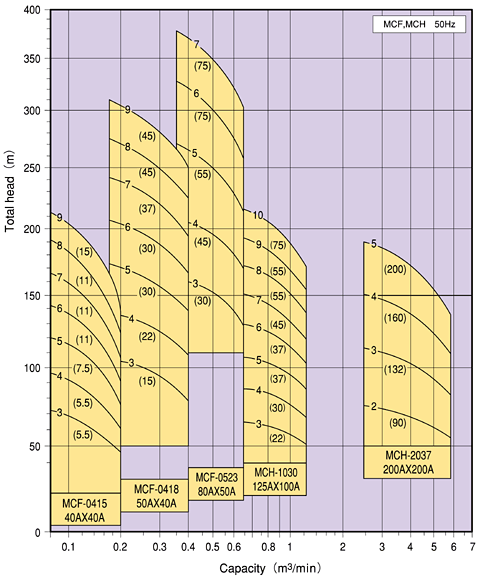

50Hz
Multistage Centrifugal Pump MCF, MCH 50Hz

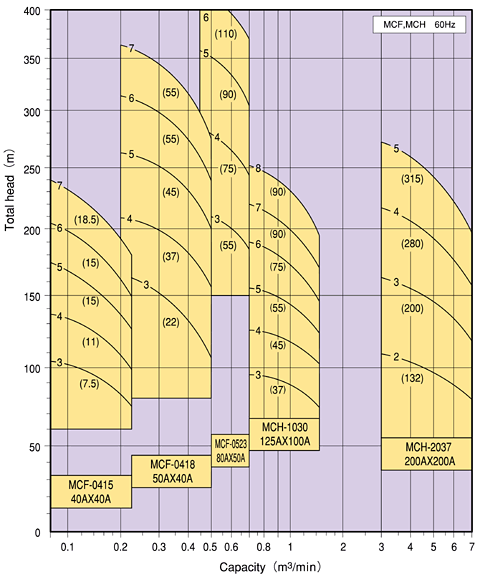

60Hz
Multistage Centrifugal Pump MCF, MCH 60Hz

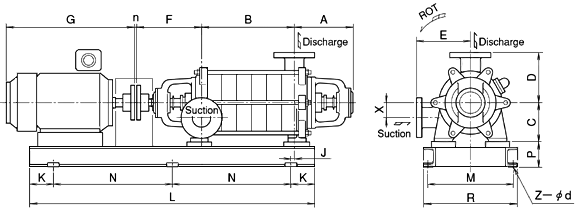

Outer dimensions
MCF, MCH types

Multistage Centrifugal Pump

Unit: mm

Model No.
Bore
Suction/
Discharge
Pump
Weight
(kg)
Motor
Base plate
A
B
C
D
E
F
X
n
Frame
No.
G
J
Z-d
K
N
L
M
R
P

MCF-3-0415

40/40

228

140

135

165

160

235

0

3

65

132S

446.5

40

4-15

125

650

900

370

400

90

4-0415

40/40

228

185

135

165

160

235

0

3

76

160M

575

40

4-19

125

850

1100

410

450

120

5-0415

40/40

228

230

135

165

160

235

0

3

87

160M

575

40

4-19

125

850

1100

410

450

120

6-0415

40/40

228

275

135

165

160

235

0

3

98

160M

575

65

4-19

150

900

1200

410

450

120

7-0415

40/40

228

320

135

165

160

235

0

3

109

160L

619

65

4-19

150

900

1200

410

450

120

8-0415

40/40

228

365

135

165

160

235

0

3

120

160M

575

65

4-19

150

1000

1300

410

450

120

9-0415

40/40

228

410

135

165

160

235

0

3

132

160M

575

65

4-19

150

1000

1300

410

450

120

MCF-3-0418

50/40

318

177

180

190

210

324

60

3

89

180M

646

60

4-19

150

900

1200

460

500

115

4-0418

50/40

318

227

180

190

210

324

60

4

106

200L

776

60

4-19

150

1000

1300

460

500

115

5-0418

50/40

318

277

180

190

210

324

60

4

123

200L

776

124

4-23

200

1000

1400

450

500

150

6-0418

50/40

318

327

180

190

210

324

60

4

140

225S

782

124

4-23

200

1000

1400

450

500

150

7-0418

50/40

318

377

180

190

210

324

60

4

157

225S

782

124

4-23

200

1100

1500

450

500

150

8-0418

50/40

318

427

180

190

210

324

60

4

174

200L

776

124

4-23

200

1100

1500

450

500

150

9-0418

50/40

318

477

180

190

210

324

60

4

191

200L

776

169

4-23

250

1100

1600

450

500

150

MCF-3-0523

80/50

402

205

230

240

240

395

0

4

115

225S

782

124

4-23

200

1100

1500

500

550

150

4-0523

80/50

402

265

230

240

240

395

0

4

140

250S

848

124

4-23

200

1100

1500

550

600

150

5-0523

80/50

402

325

230

240

240

395

0

4

165

250M

886

169

4-23

250

1200

1700

600

650

150

6-0523

80/50

402

385

230

240

240

395

0

4

190

280S

971

169

4-23

250

1200

1700

600

650

150

7-0523

80/50

402

445

230

240

240

395

0

4

215

250S

886

169

4-23

250

1200

1700

600

650

150

MCH-3-1030

125/100

430

380

300

350

350

425

0

4

460

200L

776

130

4-23

250

1200

1700

450

500

150

4-1030

125/100

430

480

300

350

350

425

0

4

520

200L

776

30

6-23

150

750 x 2

1800

450

500

180

5-1030

125/100

430

580

300

350

350

425

0

4

580

225S

782

30

6-23

150

800 x 2

1900

490

550

180

6-1030

125/100

430

680

300

350

350

425

0

4

640

250S

886

30

6-23

150

850 x 2

2000

490

550

180

7-1030

125/100

430

780

300

350

350

425

0

4

700

250M

971

20

6-23

150

900 x 2

2100

540

600

180

8-1030

125/100

430

880

300

350

350

425

0

4

760

250M

971

80

6-23

200

900 x 2

2200

540

600

180

9-1030

125/100

430

980

300

350

350

425

0

4

820

225S

782

80

6-23

200

900 x 2

2200

490

550

180

10-1030

125/100

430

1080

300

350

350

425

0

4

880

250S

886

80

6-23

200

950 x 2

2300

490

550

210

MCH-2-2037

200/200

470

450

400

480

450

514

0

4

1010

355L

1730

115

6-23

200

950 x 2

2300

790

850

210

3-2037

200/200

470

615

400

480

450

514

0

4

1210

355L

1730

165

6-23

250

1000 x 2

2500

790

850

210

4-2037

200/200

470

780

400

480

450

514

0

5

1410

400L

1800

165

6-25

250

1100 x 2

2700

890

950

230

5-2037

200/200

470

945

400

480

450

514

0

5

1610

400L

1800

215

6-25

300

1150 x 2

2900

890

950

230

 Note:

Since dimensions are based on JIS 10K standard, they may be changed according to standards/specifications.

Outer dimensions refer only to electric motors at maximum motor output, therefore there may be differences in outer dimensions. For details on related dimensional outline drawings, please contact us.


Specifications stated here may be subject to change without notice due to product improvement.
