Emergency Shutoff Valve

Emergency Shutoff Valve
UFSE type (PAT.)

Rapid shutoff by detection of abnormal pipeline condition

The excellent pilot valve mechanism detects abnormalities rapidly and performs emergency shutoff.

The main valve is safely locked in the closed condition and does not automatically reset even when normal conditions are restored.

The unique closure mechanism realizes complete water shutoff performance and leakage prevention in the fully closed condition.

The pilot valve does not have any minute, fixed restriction passage like a needle valve, and is therefore clog-resistant.

Due to its simple construction, troublesome adjustments are unnecessary. Being excellent in durability and practically maintenance-free, using this valve reduces maintenance costs.


Emergency Shutoff Valve

Patented in Japan, U.S.A., other

Bore

80-600mm

Rated pressure

1MPa


1.

When abnormalities such as breakage of a pipe arises at the downstream side of the main valve, the pressure drops and the flow rate increases abnormally. Then the differential pressure between the front and the rear of the main valve is transmitted to the pilot valve, causing pilot A valve to open, pilot B valve to close, and inlet pressure P1 is applied to the top of the main valve, closing the main valve for emergency shutoff.

2.

Since pilot B valve remains closed even when the conditions at the downstream side of the main valve return to normal, the main valve is safely locked in the closed condition and does not automatically reset.

3.

After confirming safety at the downstream side of the main valve, the reset operation valve is opened manually or by remote control to release the pressure on the top of the main valve and open the main valve to start the water supply. Then, after confirming the water supply, the reset operation valve is closed.


Specifications/Performance

Inlet pressure (Primary pressure)
Max. 1MPa (For JIS 10K standard)

Operating differential pressure
0.1MPa or more

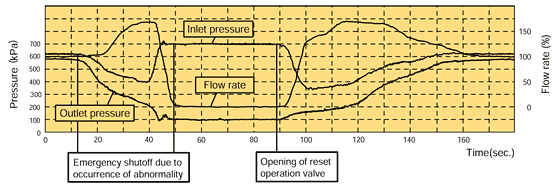

Emergency Shutoff Valve / Flow rate characteristics

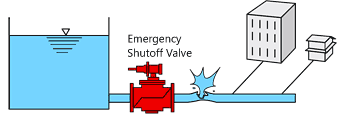

Example application

Emergency Shutoff Valve


Selection chart/Outer dimensions

Please refer to Common specifications & Outer dimensions.
