Vacuum pump built-in type UPM10-N (Direct drive, Non-clog type)

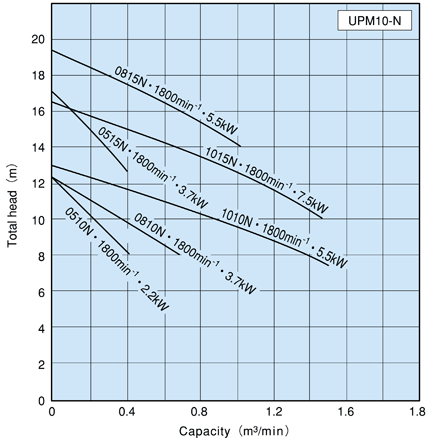

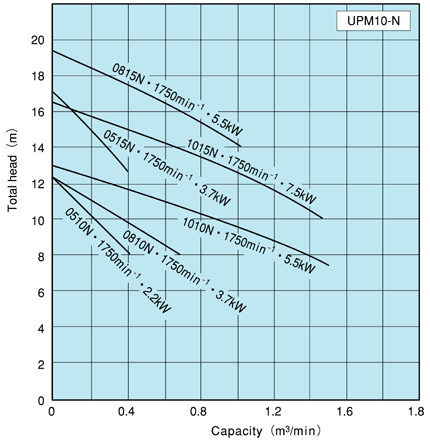

Selection chart
|
Model number explanation
UPXXX-##@@x.****.**
|
XXX
|
: MXX: Vacuum pump built-in, SXX: Vacuum pump separate
|
|
##
|
: Suction/Discharge bore (cm)
|
|
@@
|
: Head classification
|
|
x
|
: S: Semi-open main impeller, N: Non-clog main impeller
|
|
****.**
|
: Rotation speed of main impeller, Motor output power (kW) (using normal
water at normal temperature)
|
|
|
|
Required power shown above is based on normal water. Please inquire regarding
liquids with high viscosity or high specific gravity.
|
|
|
Please make sure that suction head is within 3m when using the vacuum pump
built-in type under 1500min-1.
|

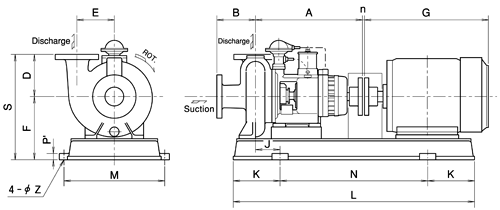

Outer dimensions
|
|
Unit: mm
|
|
Model No.
|
Pump
|
Motor
|
Base plate
|
Weight
(kg)
|
|
Bore
|
A
|
B
|
D
|
E
|
F
|
S
|
(kW)
|
Pole
number
|
G
|
n
|
J
|
K
|
N
|
L
|
M
|
P'
|
Z
|
|
M10-0510N
|
50
|
430
|
100
|
150
|
140
|
195
|
345
|
2.2
|
4
|
348
|
3
|
176
|
140
|
450
|
730
|
300
|
18
|
15
|
135
|
|
M10-0515N
|
50
|
430
|
100
|
150
|
140
|
195
|
345
|
3.7
|
4
|
376
|
3
|
177
|
140
|
450
|
730
|
300
|
18
|
15
|
160
|
|
M10-0810N
|
80
|
440
|
165
|
180
|
160
|
250
|
430
|
3.7
|
4
|
376
|
3
|
60
|
170
|
540
|
880
|
350
|
25
|
19
|
190
|
|
M10-0815N
|
80
|
440
|
165
|
180
|
160
|
260
|
440
|
5.5
|
4
|
445
|
3
|
65
|
180
|
570
|
930
|
385
|
25
|
19
|
210
|
|
M10-1010N
|
100
|
451
|
178
|
180
|
160
|
260
|
440
|
5.5
|
4
|
445
|
3
|
77
|
180
|
570
|
930
|
385
|
25
|
19
|
215
|
|
M10-1015N
|
100
|
451
|
178
|
180
|
160
|
270
|
450
|
7.5
|
4
|
485
|
3
|
65
|
200
|
630
|
1030
|
430
|
27
|
19
|
225
|
|
|
Flange standard is JIS 10K.
|
|
