Selection chart & Outer dimensions
UFS type (In-line type)
Specifications/Performance
|
|
Inlet pressure(Primary pressure)
|
Max. 1MPa (For JIS 10K standard)
|
|
|
Applicable liquid
|
Various liquids at temperatures of 0-70 degree C
(Please inquire for special liquids.)
|
|
Flange standard |
JIS 10K, JIS B2062 Waterworks standard |
|
Operating differential pressure range |
Standard type: 50-500kPa, Low differential pressure type: 20-200kPa |
|

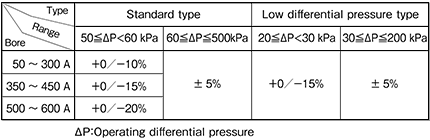

Flow rate accuracy |
|
|
 |
|
|
Inspection window is provided on valves with a bore of 150mm or more.
|
|
Bore
|
Model
No.
|
Maximum flow rate
|
Outer dimensions
|
Mounting
|
Flange
Waterworks,
JIS B2062
|
Weight
(kg)
|
Maintenance
dimension
for area
above valve
E
|
Applicable
actuator
type
|
|
Standard type
|
Low differential
pressure type
|
|
(m3/min)
|
(l/sec)
|
(m3/min)
|
(l/sec)
|

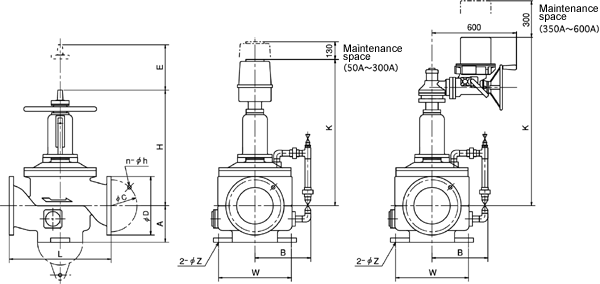

L
|
A
|
B
|
H
|
K
|
W
|
Z
|
D
|
C
|
n-h
|
|
50
|
UFS-50R
|
0.27
|
4.5
|
0.14
|
2.4
|
280
|
95
|
185
|
494
|
575
|
-
|
-
|
155
|
120
|
4-19
|
23
|
200
|
PSN1
|
|
80
|
80R
|
0.68
|
11
|
0.37
|
6
|
280
|
95
|
185
|
494
|
575
|
-
|
-
|
211
|
168
|
4-19
|
25
|
200
|
|
100
|
100R
|
1.20
|
20
|
0.66
|
11
|
350
|
127
|
195
|
532
|
615
|
-
|
-
|
238
|
195
|
4-19
|
80
|
200
|
|
150
|
150R
|
2.70
|
45
|
1.49
|
25
|
450
|
153
|
245
|
582
|
660
|
-
|
-
|
290
|
247
|
6-19
|
120
|
300
|
|
200
|
200R
|
4.80
|
80
|
2.64
|
44
|
600
|
220
|
320
|
685
|
763
|
320
|
23
|
342
|
299
|
8-19
|
230
|
300
|
PSN3
|
|
250
|
250R
|
7.50
|
125
|
4.13
|
68
|
700
|
250
|
385
|
790
|
885
|
500
|
23
|
410
|
360
|
8-23
|
380
|
400
|
|
300
|
300R
|
10.80
|
180
|
5.94
|
100
|
800
|
295
|
415
|
825
|
920
|
440
|
23
|
464
|
414
|
10-23
|
500
|
400
|
|
350
|
350R
|
12.00
|
200
|
8.40
|
140
|
900
|
305
|
440
|
880 |
1230 |
480
|
23
|
530
|
472
|
10-25
|
590
|
900
|
L120/BA
|
|
400
|
400R
|
15.90
|
265
|
10.80
|
180
|
1000
|
320
|
485
|
900
|
1240
|
660
|
25
|
582
|
524
|
12-25
|
800
|
900
|
|
450
|
450R
|
19.80
|
330
|
13.80
|
230
|
1100
|
450
|
655
|
1168
|
1500
|
600
|
27
|
652
|
585
|
12-27
|
1200
|
1000
|
|
500
|
500R
|
23.40
|
390
|
17.40
|
290
|
1200
|
450
|
655
|
1168
|
1500
|
600
|
27
|
706
|
639
|
12-27
|
1300
|
1000
|
|
600
|
600R
|
35.00
|
580
|
25.20
|
420
|
1400
|
500
|
715
|
1285
|
1600
|
700
|
27
|
810
|
743
|
16-27
|
2000
|
1000
|
Note:
|
|
The minimum flow rate while in continuous use should be more than 10% of
the maximum flow rate.
|
|
|
The model No. of low differential pressure type valves is followed by "L".
(e.g. UFS-200RL)
|
|
|
The E dimension is the minimum dimension when there is a concrete ceiling
with no opening above the valves, and is a dimension that takes into consideration
the winch device for valve bores of 350mm or more.
|
|
|
We also manufacture valves with other specifications not listed above upon
request. Please inquire.
|

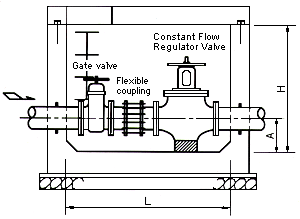

Installation examples
|

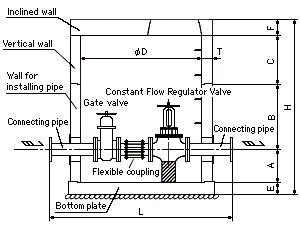

1. Unit protection equipped
|
|
|
|
Bore
|
A
|
B
|
C
|
D
|
E
|
F
|
T
|
H
|
L
|
|
50
|
400
|
800
|
600
|
1500
|
150
|
195
|
125
|
2145
|
2250
|
|
80
|
400
|
800
|
600
|
1500
|
150
|
195
|
125
|
2145
|
2250
|
|
100
|
400
|
800
|
600
|
1500
|
150
|
195
|
125
|
2145
|
2250
|
|
150
|
400
|
800
|
600
|
1500
|
150
|
195
|
125
|
2145
|
2250
|
|
200
|
400
|
1100
|
900
|
1800
|
250
|
295
|
160
|
2945
|
2650
|
|
250
|
400
|
1100
|
900
|
1800
|
250
|
295
|
160
|
2945
|
2650
|
|
300
|
450
|
1050
|
900
|
2200
|
280
|
295
|
190
|
2975
|
3100
|
|
350
|
500
|
1000
|
900
|
2200
|
280
|
295
|
190
|
2975
|
3100
|
|
|
| On-site construction time can be reduced by use of a ready-made knockdown
manhole for protective construction. (Dimension C is changeable.) The above
dimensions are in accordance with the National Uni-hole Industrial Association
Standard. |
|

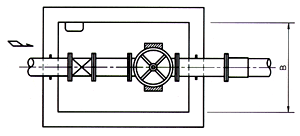

2. On-site protection construction
|
|
|
|
|
|
Bore
|
A
|
B
|
H
|
L
|
|
50
|
400
|
1500
|
1400
|
1200
|
|
80
|
400
|
1500
|
1400
|
1300
|
|
100
|
400
|
1500
|
1400
|
1400
|
|
150
|
400
|
1500
|
1400
|
1550
|
|
200
|
400
|
1500
|
1400
|
1800
|
|
250
|
400
|
1600
|
1500
|
2000
|
|
300
|
450
|
1600
|
1700
|
2200
|
|
350
|
500
|
1600
|
1800
|
2400
|
|
400
|
550
|
1900
|
2000
|
2500
|
|
450
|
750
|
1900
|
2500
|
2800
|
|
500
|
750
|
1900
|
2500
|
3000
|
|
600
|
800
|
2000
|
2700
|
3200
|
|
|
|
|
Specifications stated here may be subject to change without notice due
to product improvement.
|
