Selection chart & Outer dimensions
UFF, UFN types (In-line type)
Specifications/Performance
|
|
Inlet pressure (Primary pressure)
|
Max. 1MPa (For JIS 10K standard)
|
|
|
Applicable liquid
|
Various liquids at temperatures of 0-70 degree C
(Please inquire for special liquids.)
|
|
Flange standard |
JIS 10K |
|
|
Flow rate accuracy
|
+/- 5% at an operating differential pressure range of 70-500kPa
|
|
|
Minimum operating differential pressure
|
50kPa (flow rate accuracy of +/- 10%)
|
|
Bore
|
Model
No.
|
Maximum flow rate
|

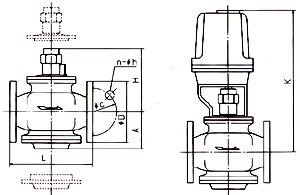

Outer dimensions
|
Flange
JIS 10K FF
|
Weight
(kg)
|
Applicable
actuator type |
|
(m3/min)
|
(l/sec)
|
L
|
A
|
H
|
K
|
D
|
C
|
n-h
|
|
25
|
UFF-25
|
0.08
|
1.3
|
130
|
60
|
115
|
345
|
125
|
90
|
4-19
|
6.5
|
MSP5 |
|
32
|
32
|
0.12
|
2
|
130
|
65
|
115
|
345
|
135
|
100
|
4-19
|
7.5
|
|
40
|
40
|
0.18
|
3
|
150
|
80
|
145
|
380
|
140
|
105
|
4-19
|
9.3
|
|
50
|
50
|
0.27
|
4.5
|
170
|
90
|
150
|
380
|
155
|
120
|
4-19
|
12.5
|
|
65
|
UFN-65
|
0.45
|
7.5
|
200
|
90
|
200
|
500
|
175
|
140
|
4-19
|
20.0
|
MSP6 |
|
80
|
80
|
0.68
|
11
|
250
|
112
|
210
|
510
|
185
|
150
|
8-19
|
23.0
|
|
100
|
100
|
1.20
|
20
|
280
|
130
|
240
|
535
|
210
|
175
|
8-19
|
35.0
|
|
125
|
125
|
1.80
|
30
|
370
|
162
|
260
|
560
|
250
|
210
|
8-23
|
60.0
|
|
150
|
150
|
2.70
|
45
|
370
|
162
|
260
|
560
|
280
|
240
|
8-23
|
63.0
|
Note:
|
|
The minimum flow rate while in continuous use should be more than 10% of
the maximum flow rate.
|
|
|
The dimension H indicates the maximum length when operating.
|
|
|
The flange dimensions show JIS 10K FF standard.
|
|
|
When installing, please make sure that there is a clearance of 100-200mm
above and below the valve so that the valve can be disassembled.
|
|
Please use the UFS type or set up the valve separately when it is necessary
to stop water completely.
|
Specifications stated here may be subject to change without notice due
to product improvement.
|
